Kore Outdoor  |  SKU: 18020

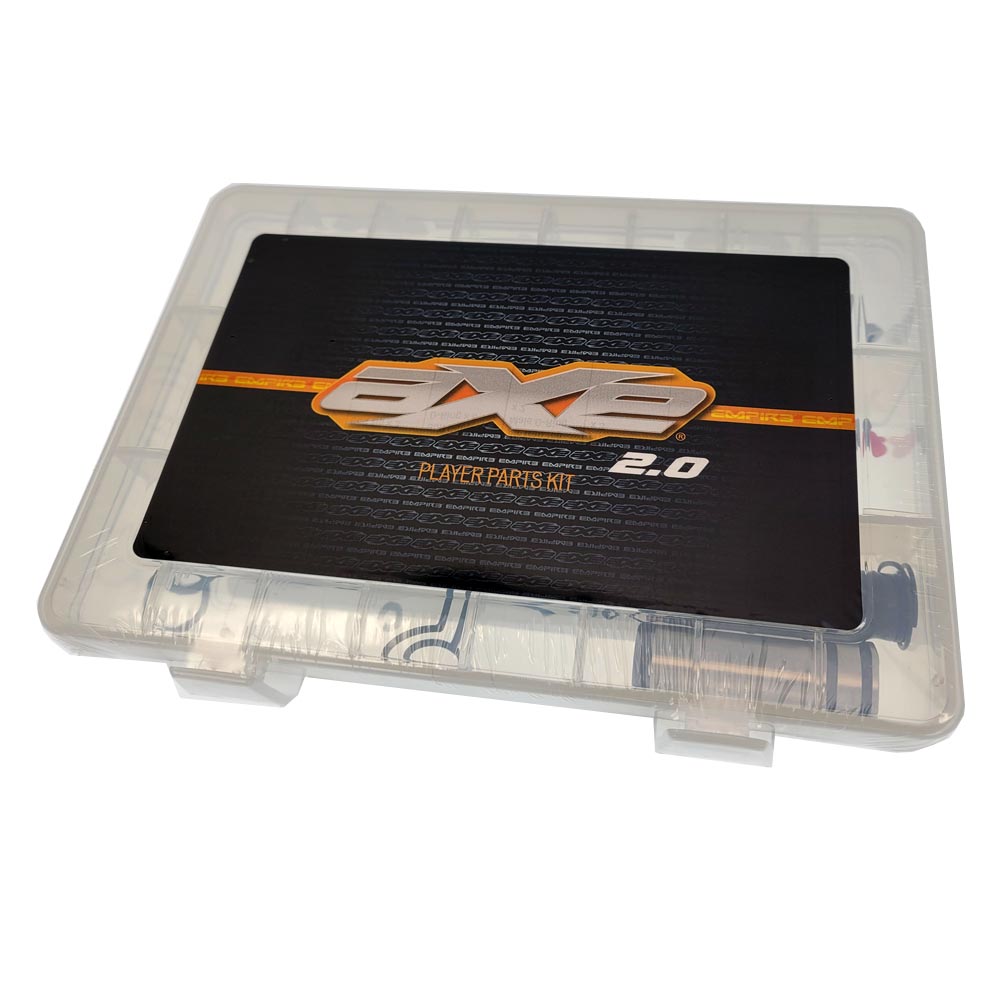

EMPIRE - AXE 2.0 Player Parts Kit

$54.90 $54.95
Shipping calculated at checkout.

Description
Empire Axe 2.0 Parts kit. This kit contains o-rings, gaskets, screws, detents, and more for your Empire Axe 2.0 paintball marker.

Contents:

Qty     Part#     Description
1        17540 Poppet O-ring / 2mm x 10mm ID 90A UR
2        17552 Upper Tube O-ring / 1mm x 13mm ID 70A Buna, Red
2        17553 Upper Tube O-ring / 0.8mm x 12mm ID 70A Buna
4        17567 Grip Panel Screw / BHCS 6-32 x .250
2        17623 Poppet Spring
2        17629 Poppet Seal
4        40916 Bolt or Reg Piston O-ring / 017/70A Buna (.676 ID)
1        72397 Air Transfer Tube Male Assembly
2        72489 O Ring - 006/70 Buna (.114 ID)
1        72496 Feedneck Clamp Screw / BHCS 8-32 X .750
1        72512 ASA Lever Screw / SHSS 3/16 Dia. 3/8 LG 8-32 x .250
1        72517 Manifold or Foregrip Screw / SHCS 5-40 x .250
1        72573 Feedneck Lever Bushing
2        72577 Ball Detent - Rubber Cone
2        72584 Bolt Guide Button Release Spring
1        72596 Regulator Filter
3        72804 Frame Screw / BHCS 8-32x.50
3        72818 Trigger Set Screw / 8-32 x.250 Flat Pt.
2        72819 Trigger Return Magnet Screw
2        73233 Eye Cover Screw
6        74100 Bolt Guide O-Ring / 2.5mm CS x 23.0mm ID 70A Buna
2        74101 Velocity Adjuster O-ring / 1.52mm CS x 11.08mm ID 70A Buna
1        74106 Bolt Guide Release Button
1        74107 Trigger Screw
